Double Inlet Centrifugal Blower Fan
video
Double Inlet Centrifugal Blower Fan

Double Inlet Centrifugal Blower Fan

Double inlet centrifugal blower fan is a type of product that uses air entry from both sides and a single air outlet which is driven by a single motor. the impeller of the fan used can be either plastic material or metal in design.

Shengzhou City Huahao Motor Manufacturing Co., Ltd. is one of the most experienced manufacturers and suppliers of double inlet centrifugal blower fan in China. Please feel free to wholesale custom made double inlet centrifugal blower fan from our factory. Contact us for more cheap products.



Double inlet centrifugal blower fan is a type of product that uses air entry from both sides and a single air outlet which is driven by a single motor. the impeller of the fan used can be either plastic material or metal in design.
This Double inlet centrifugal blower fan is adapted to offer customized solutions. Options are available from the plug type and fix hole positions to fully power suctions.
can vary from plug type and mounting hole position to fully bespoke designs for specific applications.



Product Specification



Model

FJ-150 centrifugal

Type

Both AC Single-phase and EC are available

Voltage

110/127/220V,50/60HZ

Input Power

270W

Airflow

600CFM(1000m3/h)

Noise

668 DB

Pressure:

670 pa

Rotational Speed

2100 rpm

Material

Modified PP resin for both housing and impeller

Protect Feature

Class F

Certifications

CE, Tuv, CCC.

Supply Ability

6000 sets/day

Field of application

kitchen hood, air ventilation system, and air exchange system.

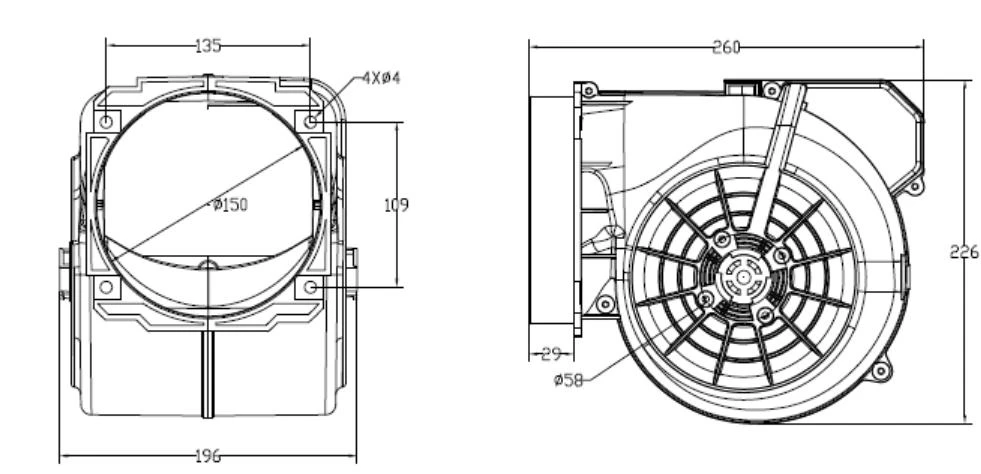

Product outline drawing for Double inlet centrifugal blower fan



Double inlet centrifugal blower fan



The performance curves diagram



The performance curves diagram



Every blower will be treat and packaged nicely to avoid any damages during production and transportation



Product packaging

factory map20211206151450aca89229241a4868b02524d0504fff47

2021120615150055b115fd51cb4dfa9c739ac12165f2ed

production workshop

equipment



Certificates of Huahao group





Our certificates shows

we Huahao motor group is a famous manufacturer which is affianced in manufacturing electrical centrifugal blowers and exporting Centrifugal Fan, Conventional Blower, Axial Fan With Basket Grill Air Blower, and many more… Located in Zhejiang province, the manufacturing center of China, the east of China, we are connected with renowned vendors of the market that helps us to provide a highly efficient range of products as per the industry set norms. We have exported our products(AC and BLDC ) to different areas of the world, including France, Germany, Spain, USA, Turkey…etc. We are the Sole Proprietorship organization that is incepted with an aim of providing a high-quality range of products across the nations.
