Shengzhou City Huahao Motor Manufacturing Co., Ltd. is one of the most experienced manufacturers and suppliers of chimney motor in China. Please feel free to wholesale custom made chimney motor from our factory. Contact us for more cheap products.
Chimney motor YPY-100-4 is a double shaft motor used for the duel inlet /double impeller blowers, it is a strong power motor with an output of 100W makes the fan create airflow of 1200~1500 m3.h.
The stator of the motor is 120mm. We have specifications such as 120h24/120h28/120h32/120h35/120h40/120h45, which depends on the power capacity requirements of customers. In addition, we have a single shaft and double shaft Chimney motor for your options.
Product Specification
Model | YPY-100-4 |
Type | AC Asynchronous single phase |
Voltage | 220V/50Hz,110V/60Hz |
Output Power | 100W |
Noise | <45 DB |
Rotational Speed | 1300 rpm |
Material | Copper, metal end cover |
Insulation class | Class B |
Approves | CCC,ETL,Tuv, CE,Rohs… |
Supply Capacity | 6000 sets/day |
Usage | kitchen hood blower and other purifier systems |

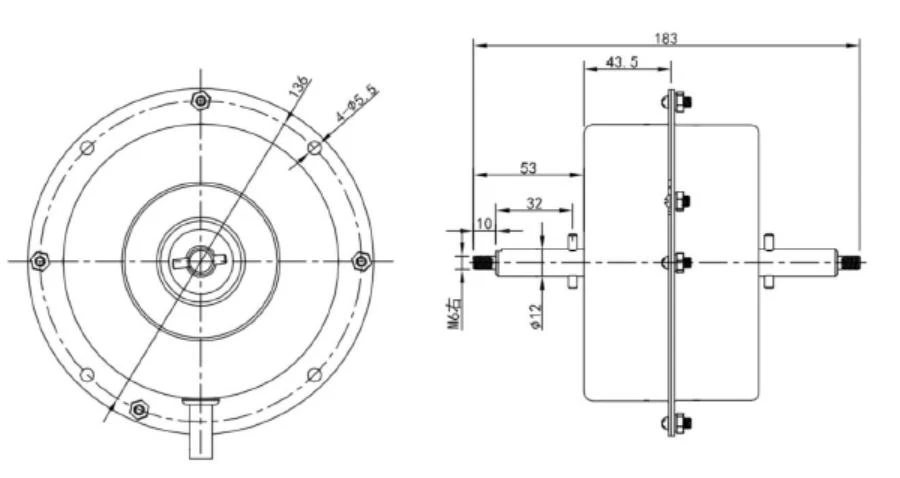

The outline Drawing of the Chimney motor
FAQ
1. What is the lead time for mass production?
Normally About 3~4 weeks.
2. How far is your factory from the airport and train station?
From airport about 30 minutes by car, and from train station about 10 minutes.
We will arrange the collection for you
3. Do you have a export licence?
Yes. We export by ourselves
4. Do you have after-sale service?
Yes, Good after-sale service, handling the customer complaint and solve problem for customers.
5. How is the packing of products?
Safe packing for long distance shipping. Bubble in cartons, pallet to avoid the damages
6. Can you arrange shipment for customer?
Yes, very good experience in shipping, we work with the most reliable shipping companies in the world, such as OOCL, Mearsk, MSC,and etc.
